FR COLLAR

FR COLLAR
FR COLLAR FR COLLAR FR COLLAR FR COLLAR FR COLLAR
Final price without VAT:
na dopyt

Description:

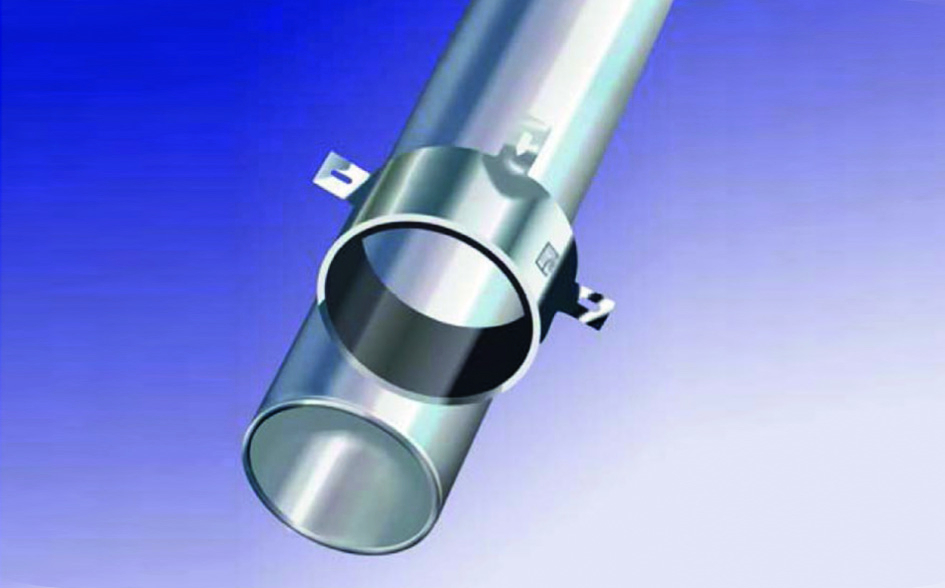

The Protecta FR Collar fire collar consists of a white-painted steel jacket, which consists of two parts for convenient fastening around plastic pipes. The cuffs have a safe and simple locking system.

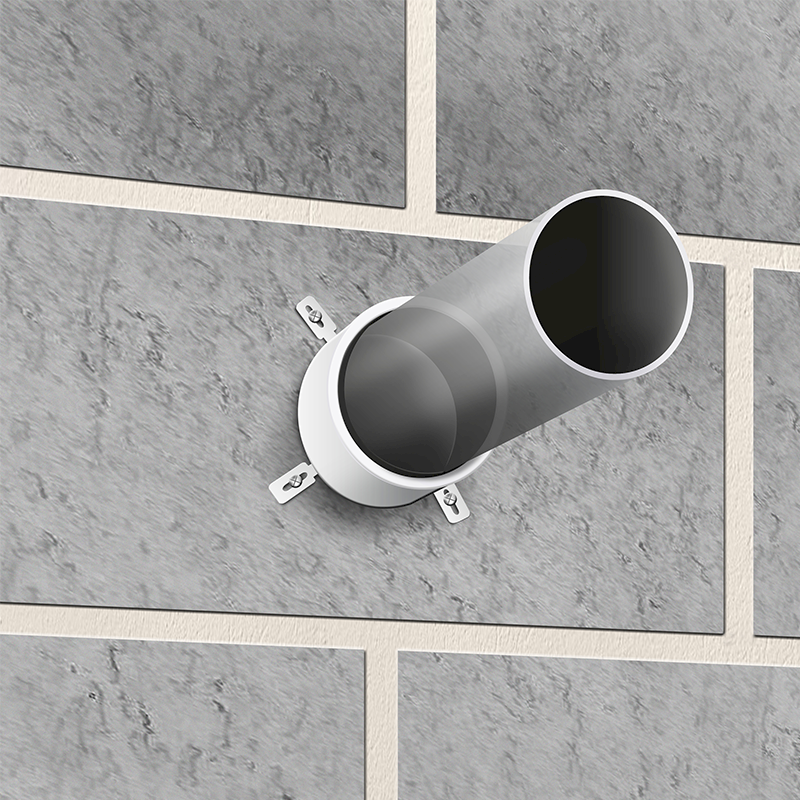

The steel jacket contains a graphite-based material that reacts to heat by filling holes created by melting plastics in transitions during a fire. It can be placed on the outside of the wall or floor.

Ordering ID:

FR-COLLAR/PRO270

In stock:

Yes

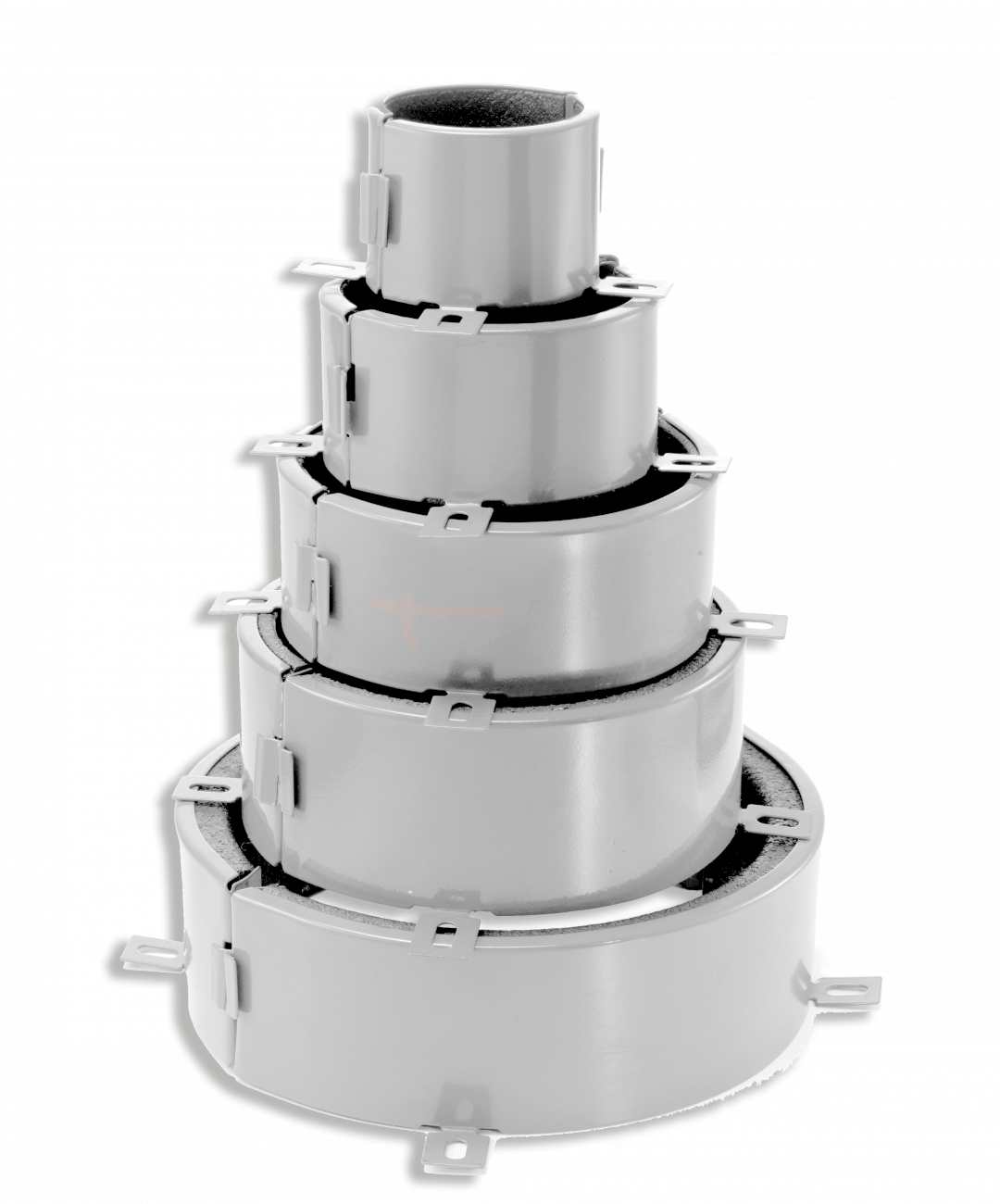

The cuffs are available in the following sizes:

Ø32mm/30mm, Ø32mm/50mm, Ø40mm/30mm, Ø40mm/50mm, Ø55mm/30mm, Ø55mm/50mm, Ø63mm/30mm, Ø63mm/50mm, Ø75mm/30mm, Ø75mm/50mm, Ø82mm/30mm, Ø82mm/50mm, Ø90mm/ 30mm, Ø90mm/50mm, Ø110mm/30mm, Ø110mm/50mm, Ø125mm/60mm, Ø140mm/60mm Ø160mm/60mm

Key features

  • New patented fast expanding graphite material
  • For pipe sizes from the smallest pipes available up to Ø315 mm pipes with a wide range of different pipe wall thicknesses

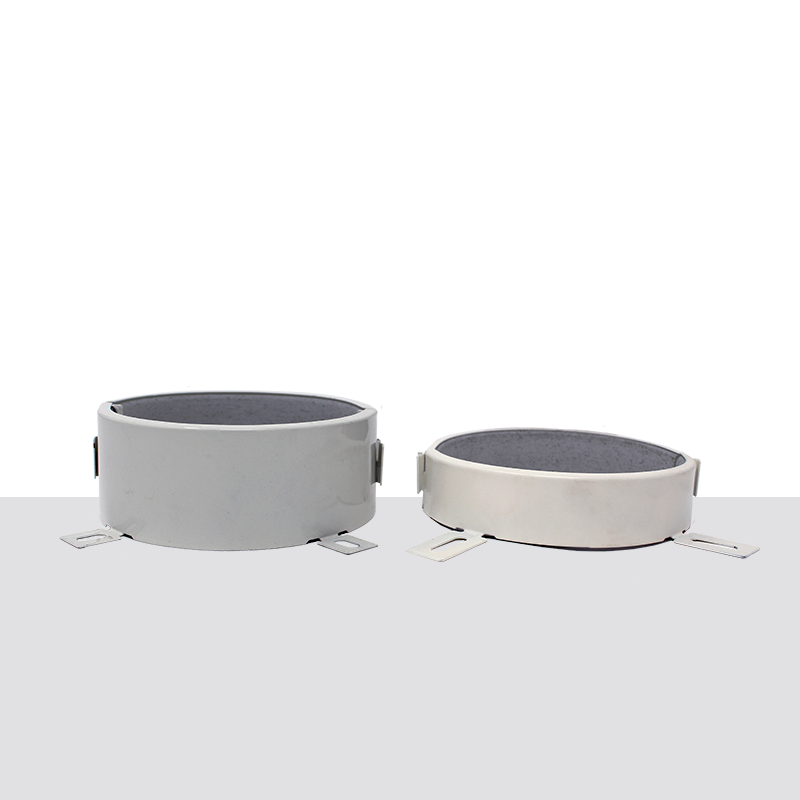

  • Cuffs are available in two different sizes for different fire classifications to maximize cost efficiency
  • Smaller pipes can be fitted into larger sleeves with the advantage of being able to accommodate pipes that are bent or if the opening around the pipe is too large
  • Fire classification within 240 minutes for both integrity and insulation
  • Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes
  • Tested and certified for U/U pipe termination applications
  • Classified for fire sealing in all types of constructions
  • Excellent sound insulation
  • No emissions - friendly to the environment and the user
  • Easy installation using off-the-shelf standard anchors
  • Unlimited storage time (under suitable conditions)
  • 30-year lifespan
